Isotropy Alnico Bonded Magnet
 Characteristics:
l Good temp. Stability (temp. coefficient of Br is about ¨C0.02%/K)
l Excellent magnetic evenness and stability
l Strong anti-demagnetization
Application:
l Due to the characteristics of above mentioned. It is widely used as magnetic driven bearing of power energy measuring instrument.
l High stability magnetic sensor
l Automatic control surveying instrument

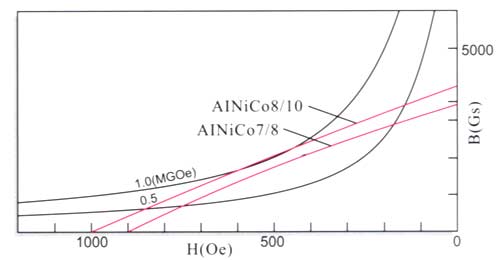

Magnetic properties and physical features of isotropic Alnico bonded magnets
|
Property
Grade
|
Residual Flux Density Br.
|
Coercive Force Hcb
|
Intrinsic Coercive force Hcj
|
Max. energy product (BH)max
|
Relative Recoil Permeability
|
Density
d
|
Temp. Coefficient
|
Curie Temp.
Tc
|
Recommended Magnetization Field
|
|
KGs
(mT)
|
Oe
(KA/m)
|
Oe
(KA/m)
|
MGOe
(KJ/m3)
|
----------
|
g/cm3
|
%/K
|
|
Koe
(KA/m)
|
|
Alnico7/8
|
3.4 (340)
|
900 (72)
|
1050 (84)
|
0.88 (7.0)
|
3.0
|
5.6
|
-0.02
|
850
|
3.0 (240)
|
|
Alnico8/10
|
3.5 (350)
|
1000 (80)
|
1200 (96)
|
1.00 (8.0)
|
3.0
|
5.8
|
-0.02
|
850
|
|
