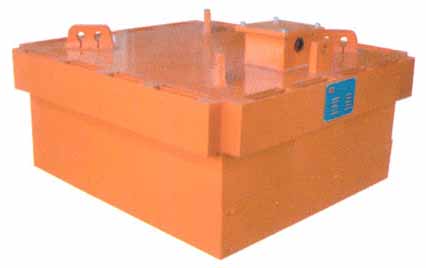

Home > Products > Magnetic separator > ZCDB Plate Electromagnetic Separators

Magnetic Separator

Feature: Suitable for different kinds of material feeding conditions, especially for worse conditions. Small volume. Light weight. Compact structure. Maintenance free. No noise. Better heat releasing. Low temperature rise. Optional magnetic force at the suspension height rated: 500Gs, 700Gs, 900Gs, 1200Gs, 1500Gs etc.

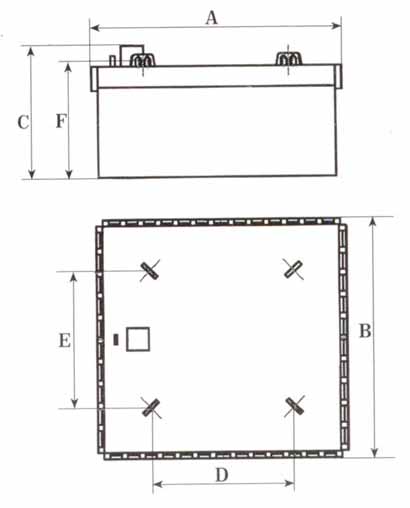

Technical Parameters of ZCDB Plate Electromagnetic Separators Type Belt Width Cooling Method Suspension Height Rated(SHR) H Magnetic Intensity at SHR Excitation power Outline Dimensions (mm) Weight mm mm mT kw A B C D E F kg ZCDB-5 500 cross-ventilation 150 ≥70 ≤2 891 908 470 550 560 400 550 ZCDB-6 650 200 ≤3 1034 958 560 600 600 480 750 ZCDB-8 800 250 ≤4 1066 1058 665 600 600 580 1200 ZCDB-10 1000 300 ≤7.5 1216 1208 740 750 750 670 1900 ZCDB-12 1200 350 ≤9.5 1456 1408 840 900 900 770 2700 ZCDB-14 1400 400 ≤12 1656 1608 935 1000 1000 867 3800 ZCDB-16 1600 450 ≤14.5 1856 1808 1015 1200 1200 947 5000 ZCDB-18 1800 500 ≤18 2151 2108 1070 1400 1400 1020 5900 ZCDB-20 2000 550 ≤31.5 2263 2208 2308 1700 1700 1700 8500 Type Belt Width Suspension Height Rated(SHR) H Magnetic Intensity at SHR Cooling Method Excitation power Outline Dimensions (mm) Weight mm mm mT kw A B C kg ZCDB-6 T1 650 200 90 cross-ventilation 5 1034 958 652 1000 T2 120 7.5 1300 1310 610 1760 T3 150 9.5 1390 1400 770 2800 ZCDB-8 T1 680 250 90 7.5 1241 1150 713 1600 T2 120 9.5 1410 1400 801 2750 T3 150 14.5 1600 1650 835 3900 ZCDB-10 T1 1000 300 90 9.5 1301 1258 783 2800 T2 120 14.5 1610 1650 830 3170 T3 150 19.5 1770 1750 930 5300 ZCDB-12 T1 1200 350 90 12 1456 1408 855 3700 T2 120 17.5 1701 1708 945 5300 T3 150 24 1950 1980 980 6900 ZCDB-14 T1 1400 400 90 18.5 1656 1608 982 5350 T2 120 21 1901 1808 1125 6500 T3 150 35 2150 2200 1130 9300 ZCDB-16 T1 1600 450 90 20.5 1856 1808 1047 6450 T2 120 28.5 1956 1958 1150 8400 T3 150 42 2300 2350 1220 13400 ZCDB-18 T1 1800 500 90 26 2151 2108 1130 8300 T2 120 33.5 2151 2158 1250 10400 T3 150 50 2500 2480 1350 16500 ZCDB-20 T1 2000 550 90 30 2263 2208 1255 8900 T2 120 39.5 2263 2258 1330 16000 T3 150 59 2600 2650 1450 20600 ZCDB-22 T1 2200 600 90 34 2460 2410 1260 13400 T2 120 45.5 2460 2460 1440 19000 T3 150 69 2750 2800 1560 23300 ZCDB-24 T1 2400 650 90 41.5 2660 2610 1400 17000 T2 120 52 2660 2660 1540 23500 T3 150 78 2900 2950 1650 29700 (For Reference Only) DownLoad (PDF) Back to Magnetic-Separator
