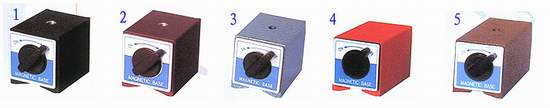

1.Magnetic Base

Magnetic Base

NO Model Order Work Magnetic Force Height Width Length Weight Size of Installation Hole
1 MB-4D 10101 392N(40kg) 55mm 50mm 58mm 0.9kg M8*1.25 Depth 7
2 MB-6D 10102 588N(60kg) 63mm 1.0kg
3 MB-8D 10103 784N(80kg) 69mm

1.2kg

4 MB-10D 10104 980N(100kg) 88mm 1.6kg
5 MB-12D 10105 1178N(120kg) 118kg 1.8kg

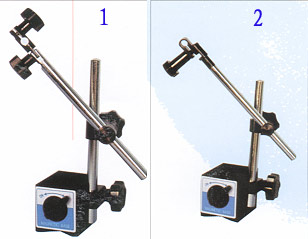

2.Magnetic Stand With Non-microadjustment


Magnetic Stand With Non-microadjustment

Model Order Work Magnetic Force Main Body Main Stem Assistant Stem Diameter of Hole Work
Angle		 Weight
H W L Length Diameter Length Diameter
MB-B 10201 392N(40kg) 55 50 58 176 12 150 10 4.5/8.0+0.02
or
4.5/9.5+0.02		 150 1.4
CZ-6C 10202 588N(60kg) 63 1.5
CZ-8C 10203 784N(80kg) 69 1.7



3.Magnetic Stand With Microadjustment

Model Order Work Magnetic Force Main Body Main Stem Assistant Stem Diameter of Hole Work
Angle		 Weight
H W L Length Diameter Length Diameter
MB-BV 10301 392N(40kg) 55 50 58 176 12 150 10 4.5/8.0+0.02
or
4.58/9.5+0.02		 150 1.4
WCZ-6C 10302 588N(60kg) 63 1.5
WCZ-8C 10303 784N(80kg) 69 1.7



4. Magnetic Stand With Extra Stem

Maagnetic Stand With Extra Stem
NO Model Order Work Magnetic Force Main Body Main Stem Assistant Stem Diameter
of Hole		 Work
Angle		 Weight
H W L Length Diameter Length Diameter
1 CZ-6CL 10401 588N
(60kg)		 55 50 63 225 16 180 12 4.5/8.0
+0.02
or
4.58/9.5
+0.02		 150 2.0
2 WCZ-6CL 10402 220
3 CZ-10DL 10403 980N
(100kg)		 65 60 100 400 20

380

18 Vario-us Angle 5.0
4 WCZ-10DL 10404 400
5 CZ-6c-I 10405 588N
(60kg)		 55 50 63 225 12 190 10 150 1.5
6 WCZ-6C-I 10406

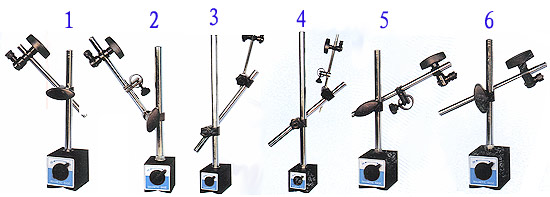

5.Beam-shaped Structure Magnetic Stand

NO Model Order Work
Magnetic Force		 Main Body Main Stem Assistant Stem Diameter of Hole Work
Angle		 Weight
H W L Length Diameter Length Diameter
1 CZ-6A 10501 588N(60kg) 55 50 63 180 13 180 12 8.0+0.02 Various Angle 1.6
2 CZ-6A-I 10502 160 12 180 10 1.5



6.Beam-shaped Structure Magnetic Stand

.Beam-shaped Structure Magnetic Stand

NO Model Order Work Magnetic Force Main Body Main Stem Assistant Stem Diameter of Hole Work
Angle		 Weight
H W L Length Diameter Length Diameter
1 F80 10601 784N(80kg) 80 60 75 M12 412 20 250

6.0-8.0

135 4
2 F60 10602 588N(60kg) 60 46 70 M18 230 16 260 2.3



7.Hydraulic Universal Magnetic Stand

Hydraulic Universal Magnetic Stand

N0 Model Order Work Magnetic Force Main Body Main Stem Diameter of Hole Work
Angle		 Weight
H W L Length Slot Hole
1 YW-6CU 10701 588N(60kg) 55 50 63 380 6.5 8.0+0.02 or 9.5+0.02 150 2
2 YW-8CU-I 10702 784N(80kg) 69 2
YW-8CU-II 10703 330 2

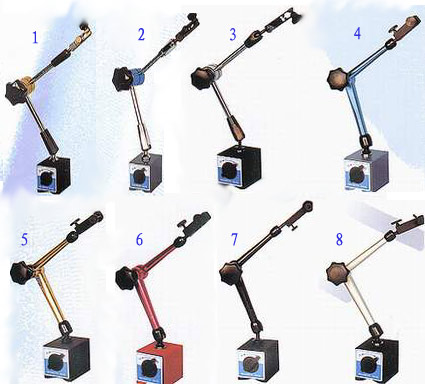

8.Universtl Mechanical Arm Magnetic Stand

Universtl Mechanical Arm Magnetic Stand
Model Order Work Magnetic Force Main Body Main Stem Diameter of Hole Work
Angle		 Weight
H W L Length COLOUR Slot Hole
1 WCE-6CA 10801 588N(60kg) 55 50 63 350   6.5 8.0 +0.02 or 9.5 +0.02 150 1.9
2 WCE-6CA-1 10802
3 WCE-6CB 10803 320 1.8
4 WCE-6CC 10804 290 BLUE 1.6
5 10805 GOLDEN
6 10806 RED
7 10807 BLACK
8 10808 WHITE

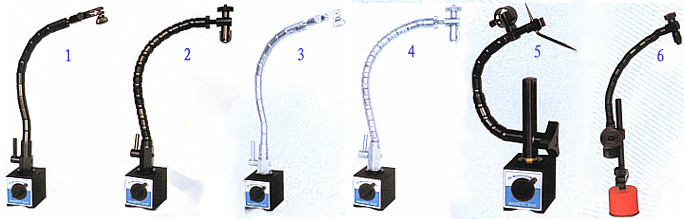

9.Flexible Stem Magnetic Stand

Flexible Stem Magnetic Stand
Model Order Work Magnetic Force Main Body Main Stem Diameter of Hole Work
Angle		 Weight
H W L Length Diameter solt Diameter
1 CV-6CA 10801 588N(60kg) 55 50 63 350 16 6.5 8.0 or 9.5 150 1.6
2 CV-6CB 10802 315 4-10
3 CV-6CC 10803 355 6.5 8.0 or 9.5
4 CV-6CD 10804 360 4-13
5 CV-6CE 10805 270 4 and 8
6 CV-6CF 10806 147N(15kg) Diameter35*30H 270 10 3-6.5 0.6

Flexible Stem with Locking Plier Set Stand


Flexible Stem with Locking Plier Set Stand

Model Order SIZE plier Weight
Length Diameter Length
FPS 10907 340 16 7" 0.8

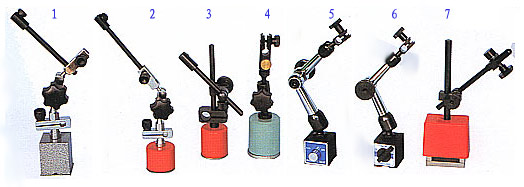

10.Mini Magnetic Stand

Mini Magnetic Stand
Model Order Work Magnetic Force Main Body Main Stem Assistant Stem Diameter of Hole Weight
H Diameter Length Diameter Length Diameter solt Hole
1 MV-I 11001 147N(15kg) 35X30X30 105    88 5.8 6.5 6 0.4
2
MV-II
 11002 30 35
3
MV-III
 11003 30 28 90 5.8 90 5.8   4.0-6.0 0.3
4 MV-IV 11004 30 28 145   6.5   0.3
5
AH-HP
 11005 167N(17KG) 30X30X30 150 0.4
6 NF-HP 11006 8.0 0.4
7 MU-T 11007 198N(20kg) 50X30X53 95 8 115 6.3   6.5 0.4
