Home > Products > Magnetic separator > ZCDC Self-cleaning Electromagnetic Separator

Magnetic Separator

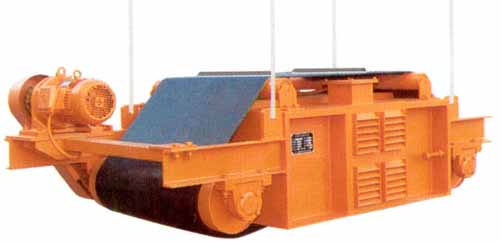

Feature: Installed above the conveyor to remove scrap iron buried in thick material layer. Equipped with a tough, vulcanized rubber belt to remove scrap irons continuously. High-quality Aluminum or copper wire used. Optional magnetic force at the suspension height rated: 500Gs, 700Gs, 900Gs, 1200Gs, 1500Gs or above, which will be determined by the requirements of the client. Equipped with fan-cooling system. Heavy-duty construction. Compact design. Electric motor with chain drive transmission. Departure of the belt can be rectified automatically. Low noise. Low maintenance, much power saved. Can be suspended either crossbelt(perpendicular to the product flow) or inline (parallel above the product flow).

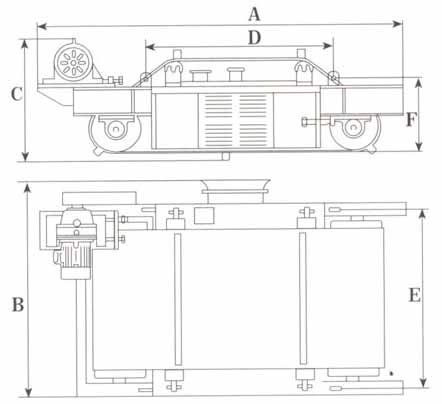

Technical Parameters of ZCDC Self-cleaning Electromagnetic Separators Type Belt Width Cooling Method Suspension Height Rated(SHR) H Magnetic Intensity at SHR Excitation power Driven Power Cooler Power Outline Dimensions (mm) Weight mm mm mT kw kw kw A B C D E F kg ZCDC-5 500 Fan-Cooling 150 ≥70 ≤2 1.5 0.37 2160 1136 733 832 776 411 880 ZCDC-6 650 200 ≤3 1.5 0.37 2240 1270 733 881 873 486 1100 ZCDC-8 800 250 ≤4.5 2.2 0.55 2465 1539 735 1240 1073 537 1580 ZCDC-10 1000 300 ≤6 3.0 0.55 2650 1727 821 1365 1273 650 2350 ZCDC-12 1200 350 ≤9.5 3.0 1.1 3090 2052 908 1660 1523 761 3250 ZCDC-14 1400 400 ≤12 4.0 1.1 3266 2243 974 1930 1723 841 4550 ZCDC-16 1600 450 ≤14.5 5.5 1.5 3564 2505 1032 2100 1930 945 6550 ZCDC-18 1800 500 ≤15.5 7.5 1.1×2 3910 2770 1550 2030 2130 1393 11800 ZCDC-20 2000 550 ≤18 7.5 1.5×2 4270 2880 1560 2180 2330 1337 13000 Type Belt Width Suspension Height Rated(SHR) H Magnetic Intensity at SHR Driven Power Cooler Power Excitation power Outline Dimensions (mm) Weight mm mm mT kw kw kw A B C kg ZCDC-6 T1 650 200 90 1.5 0.37 4.5 2400 1280 660 1750 T2 120 2.2 0.55 5.5 2600 1380 780 2000 T3 150 2.2 0.55 7.5 2800 1380 1030 2800 ZCDC-8 T1 800 250 90 2.2 0.55 5.5 2402 1463 742 1880 T2 120 2.2 0.55 6 2710 1538 850 3000 T3 150 3 1.1 12 2623 1500 851 3680 ZCDC-10 T1 1000 300 90 3 0.55 7.5 2790 1725 860 2450 T2 120 3 1.1 10.5 2917 1696 950 3500 T3 150 4 1.5 15.5 3000 1727 1040 5300 ZCDC-12 T1 1200 350 90 4 1.1 9 3070 2052 910 3600 T2 120 4 2.2 15 3070 2000 1080 5300 T3 150 5.5 1.1×2 20.5 3450 2052 1230 5550 ZCDC-14 T1 1400 400 90 4 1.1 11.5 3850 2243 1100 4600 T2 120 5.5 0.55×2 16 3850 2243 1330 7500 T3 150 5.5 2.2 22.5 3850 2243 1360 10100 ZCDC-16 T1 1600 450 90 5.5 1.5 17 4070 2290 1105 7850 T2 120 5.5 1.1×2 24 4070 2510 1355 13050 T3 150 7.5 1.1×2 30 4070 2510 1440 14200 ZCDC-18 T1 1800 500 90 7.5 1.1×2 20 4550 2770 1380 12800 T2 120 7.5 1.1×2 25.5 4550 2770 1560 14500 T3 150 11 1.5×2 34 4550 2770 1480 17800 ZCDC-20 T1 2000 550 90 7.5 1.1×2 22.5 5020 2880 1470 14200 T2 120 11 1.1×2 30.5 5020 2880 1570 18700 T3 150 11 2.2×2 4. 5200 2880 1685 21500 ZCDC-22 T1 2200 600 90 11 1.1×2 26 5500 3070 1550 17000 T2 120 11 1.5×2 34 5400 3070 1760 20000 T3 150 15 2.2×2 43 5500 3070 1800 26000 ZCDC-24 T1 2400 650 90 15 1.1×2 28 5700 3170 1640 20500 T2 120 15 1.5×2 37 6000 3170 1760 23800 T3 150 15 2.2×2 49 6200 3170 1920 29000 (For Reference Only) Back to Magnetic-Separator
