Feature:

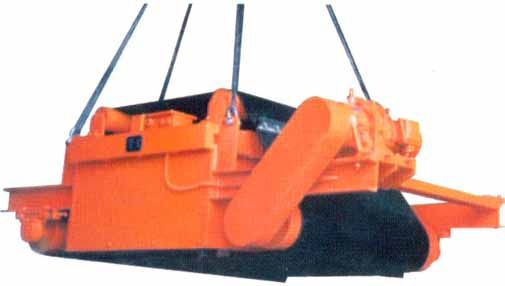

• Installed above the conveyor to remove scrap iron buried in thick material layer.
• Equipped with a tough, vulcanized rubber belt to remove scrap irons continuously.
• High-quality Aluminum or copper wire used.
• Optional magnetic force at the suspension height rated: 500Gs, 700Gs, 900Gs, 1200Gs, 1500Gs or above, which will be determined by the requirements of the client.
• Optional stainless steel clad belt.
• Low noise. Low maintenance.
• Can be suspended either crossbelt(perpendicular to the product flow) or inline (parallel above the product flow).

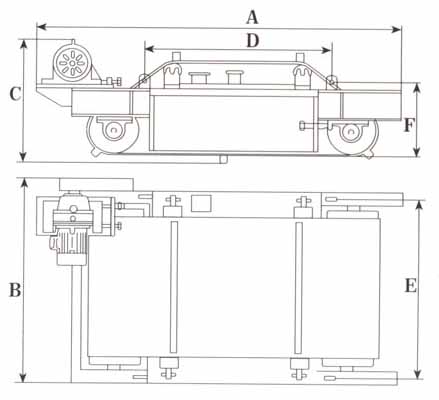

Technical Parameters of ZCDD Self-cleaning Electromagnetic Separators Type Belt Width Cooling Method Suspension Height Rated(SHR) H Magnetic Intensity at SHR Excitation power Driven Power Outline Dimensions (mm) Weight mm mm mT kw kw A B C D E F kg ZCDD-5 500 Cross-ventilation 150 ≥70 ≤2 1.5 2090 965 740 905 730 516 920 ZCDD-6 650 200 ≤3 1.5 2320 1105 738 955 873 486 1230 ZCDD-8 800 250 ≤4.5 2.2 2475 1213 947 1000 1010 537 1760 ZCDD-10 1000 300 ≤6 3.0 2780 1550 950 1200 1210 650 2850 ZCDD-12 1200 350 ≤9.5 3.0 3085 1673 1046 1400 1450 761 4020 ZCDD-14 1400 400 ≤12 4.0 3420 1972 1160 1700 1650 841 5500 ZCDD-16 1600 450 ≤14.5 5.5 3680 2100 1235 1850 1850 945 7790 ZCDD-18 1800 500 ≤18 7.5 3910 2760 1550 1900 2050 1393 11800 ZCDD-20 2000 550 ≤23.5 7.5 4270 2580 1560 1900 2250 1337 13000 Type Belt Width Suspension Height Rated(SHR) H Cooling Method Magnetic Intensity at SHR Driven Power Excitation power Outline Dimensions (mm) Weight mm mm mT kw kw A B C kg ZCDD-6 T1 650 200 Cross-ventilation 90 1.5 4 2400 1100 804 1400 T2 120 2.2 7.5 2600 1360 788 2560 T3 150 2.2 9.5 2800 1360 975 3400 ZCDD-8 T1 800 250 90 2.2 7.5 2820 1241 878 2170 T2 120 2.2 9.5 2880 1441 923 2750 T3 150 3 14.5 2710 1650 1015 4270 ZCDD-10 T1 1000 300 90 3 9.5 3115 1512 937 3200 T2 120 3 14.5 3115 1650 1040 4170 T3 150 4 19.5 3115 1770 1140 5760 ZCDD-12 T1 1200 350 90 4 12 3270 1975 1090 4550 T2 120 4 17.5 3270 1950 1280 6800 T3 150 5.5 24 3450 1950 1151 8100 ZCDD-14 T1 1400 400 90 4 18.5 3850 1970 1277 6750 T2 120 5.5 21 3850 1970 1350 8300 T3 150 5.5 35 3850 2150 1355 9900 ZCDD-16 T1 1600 450 90 5.5 20.5 3970 2050 1245 8000 T2 120 5.5 28.5 4070 2150 1370 11200 T3 150 7.5 42 4070 2300 1440 14600 ZCDD-18 T1 1800 500 90 7.5 26 4550 2470 1360 12200 T2 120 7.5 33.5 4550 2470 1480 15670 T3 150 11 50 4550 2500 1580 18700 ZCDD-20 T1 2000 550 90 7.5 30 5020 2583 1485 14500 T2 120 11 39.5 5020 2583 1560 18500 T3 150 11 59 5020 2600 1680 21700 ZCDD-22 T1 2200 600 90 11 34 5200 2720 1490 17400 T2 120 11 45.5 5400 2720 1670 21800 T3 150 15 69 5500 2750 1790 27300 ZCDD-24 T1 2400 650 90 15 41.5 5700 2870 1630 21000 T2 120 15 52 6000 2870 1770 25000 T3 150 15 78 6200 2900 1880 32500 (For Reference Only) DownLoad (PDF) Back to Magnetic-Separator
