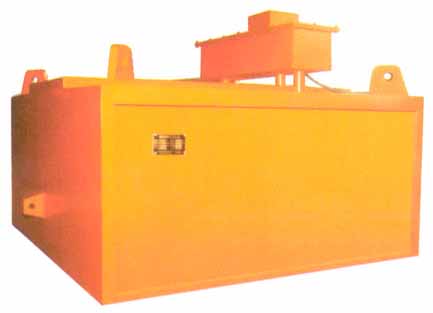

Home > Products > Magnetic separator > ZCDE Oil-cooling Electromagnetic Separator

Magnetic Separator

Feature:

• Perfect design for getting maximum magnetic strength.
• High-quality Aluminum or Copper wire winded under strict procedure to achieve powerful, oil-cooled electromagnet, discontinuous running.
• Reliable, durable belt with rubber cleats.
• Equipped with full function control box, which is made of electric components produced by world-famous suppliers such as Siemens, Schneider and Chint.
• High-quality cooling oil and optimized oil circulating design makes lower temperature rise.

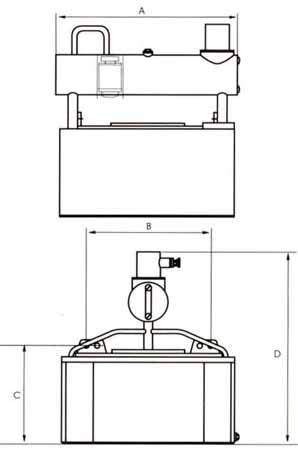

Technical Parameters of ZCDE Oil-cooling Electromagnetic Separator Type Belt Width Suspension Height Rated(SHR) H Magnetic Intensity at SHR Excitation power Outline Dimensions (mm) Weight mm mm GS kw A B C D kg ZCDE-6 650 200 700 3.5 926 900 370 870 720 ZCDE-8 800 250 700 4.5 1133 1050 460 960 1290 ZCDE-10 1000 300 700 6 1333 1250 520 1020 2130 ZCDE-12 1200 350 700 8 1593 1400 620 1120 2900 ZCDE-14 1400 400 700 9.5 1793 1600 700 1200 3500 ZCDE-16 1600 450 700 11.5 2000 1700 750 1250 5500 Type Belt Width Suspension Height Rated(SHR) H Magnetic Intensity at SHR Driven Power Excitation power Outline Dimensions (mm) Weight mm mm GS kw kw A B C D kg ZCDE-6 T1 650 200 900 --- 5 926 1000 410 910 900 T2 1200 0.37 6.5 1260 1100 470 970 1400 T3 1500 0.55 9.5 1440 1200 550 1050 2000 ZCDE-8 T1 800 250 900 --- 6.5 1133 1100 500 1000 1500 T2 1200 0.55 9.5 1470 1200 550 1050 2200 T3 1500 1.1 12.5 1540 1300 640 1140 2900 ZCDE-10 T1 1000 300 900 --- 9 1333 1250 580 1080 2550 T2 1200 1.1 12.5 1470 1250 640 1140 3050 T3 1500 1.5 16.5 1890 1450 730 1230 4200 ZCDE-12 T1 1200 350 900 --- 11 1593 1500 650 1150 3750 T2 1200 1.5 16.5 2090 1500 730 1230 4650 T3 1500 0.55×2 21 1930 1600 850 1350 5900 ZCDE-14 T1 1400 400 900 --- 14 1793 1700 750 1250 5400 T2 1200 0.55×2 20 2130 1700 860 1360 6100 T3 1500 1.1×2 26.5 2130 1700 960 1460 7750 ZCDE-16 T1 1600 450 900 --- 16.5 2000 1900 850 1350 7650 T2 1200 1.1×2 25 2340 1900 950 1450 8700 T3 1500 1.5×2 33 2490 1900 1100 1600 10500 (For Reference Only) Back to Magnetic-Separator
