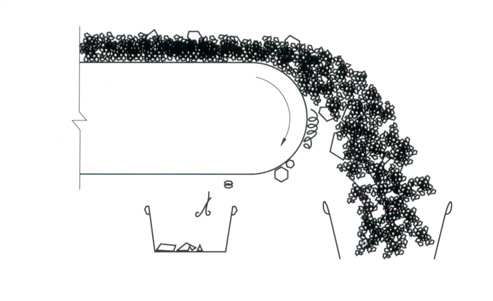

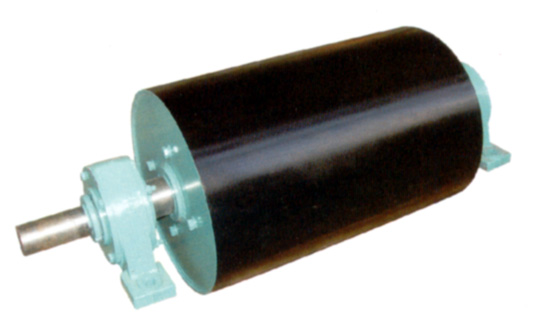

ZCY-G is a drive permanent magnet clean metal device, also could be used as rotational roller, could continual and automatic separate the ferromagnetism impurity which adulterate in non-magnetic material in the conveyer belt. To united this magnetic roller and hanging clean metal machine , could clean the impurity in the thick material layer .

This product is divided into two series , coincide with externality and install size of type DT 11 and DT 75 drive roller. For using conveniently , it was be extensively used in many industry , such as mining , electric , coal , port, construction materials, petrol-chemical , foodstuff etc .

Feature:

1

3 lambdoidal magnetic roller with rubber coating (left out shaft: Z)
2
3
lambdoidal magnetic roller with rubber coating (right out shaft: Z)
4
rhombic magnetic roller with rubber coated

Guide to order:

  • Choose roller in different diameter base in carrying capacity
  • The type of the surface of the magnetic-roller :

    A. Armor plate mill finish

    B. cover with pastern ( three type : mill finish pastern., Lozenge pastern . herringbone pastern

  • It is needed to record the axial when order the herringbone pastern
4

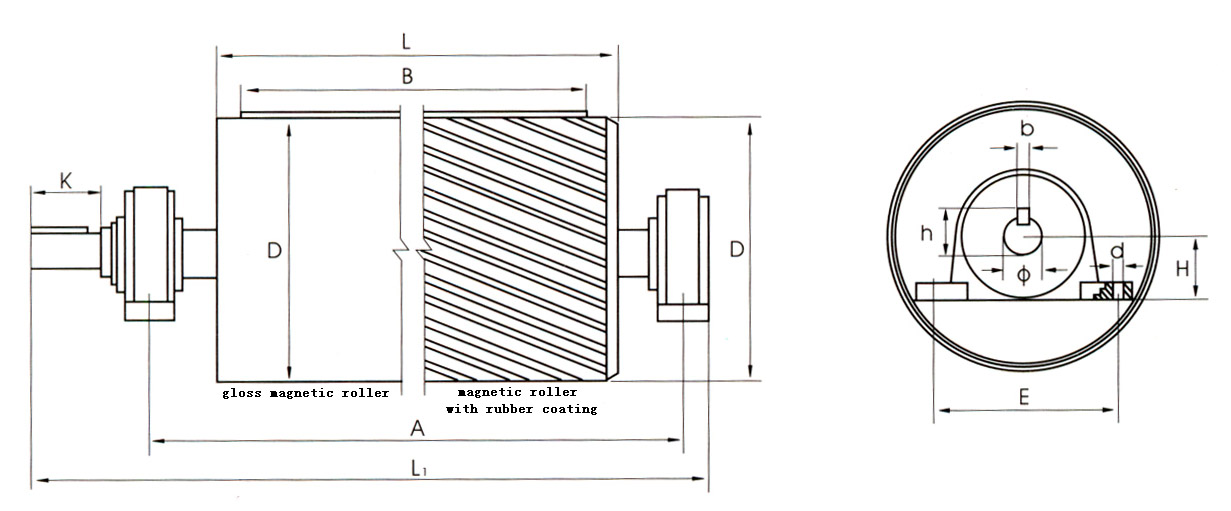

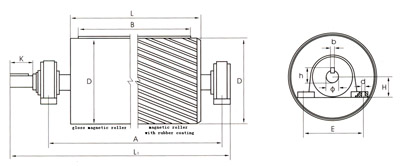

Technical Parameters of ZCY-G Permanent Magnetic Meparator Drive Roller

Type
ZCY-GB (cm)

Roller Length
L

Roller Diameter
D

Shaft Head
Φ×K

Key

Bearing Base

Bearing Model

Overall Length
L1

Magnetic Force on roller surface (mT)

Torque Permitted KN、m

Weight
(Kg)

b

h

A

E

H

d

gloss magnetic roller

magnetic roller with rubber coating

ZCY-G50

600

500

55×115

16

60

850

240

80

27

1312

1097

Regular P=150~250

Special
T=300~400

1.63

2.5

380

ZCY-G65-1

750

500

70×135

20

76

1000

350

120

27

1316

1280

2.12

3.26

580

ZCY-G65-2

630

2.96

4.54

800

ZCY-G80-1

950

500

70×135

20

76

1300

350

120

27

1316

1580

2.62

4.01

765

ZCY-G80-2

630

90×175

24

97

380

140

3520

1661

3.67

5.61

1090

ZCY-G80-3

800

5.59

8.55

1480

ZCY-G100-1

1150

630

90×135

24

97

1500

380

140

27

3520

1861

4.57

7.01

1285

ZCY-G100-2

800

110×215

32

119

440

160

34

3524

1945

6.96

10.68

1865

ZCY-G100-3

1000

130×225

36

140

480

180

3528

2020

17.75

2795

ZCY-G120-1

1400

630

110×215

32

119

1750

440

160

34

3524

2195

5.49

8.4

1610

ZCY-G120-2

800

8.37

12.81

2465

ZCY-G120-3

1000

130×225

36

140

480

180

3528

2270

21.3

3560

ZCY-G120-4

1250

150×275

40

161

540

200

3532

2305

30

5230

ZCY-G140-1

1600

800

110×215

32

119

2000

440

160

34

3524

2445

9.76

14.92

2865

ZCY-G140-2

1000

150×275

40

161

540

200

3532

2555

24.925

4405

ZCY-G140-3

1250

35.0

6005

ZCY-G140-4

1400

170×335

181

590

220

40

3536

2635

47.0

7535

(For Reference Only)
