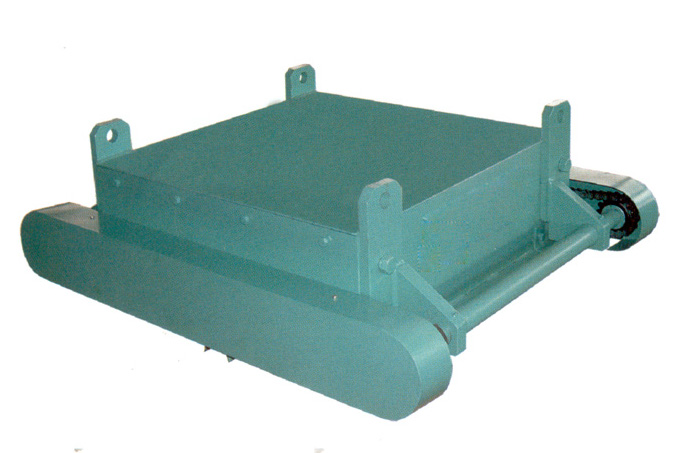

Home > Products > Magnetic separator > ZCY-P Manual Cleaning Permanent Magnetic Separators

Magnetic Separator

inlp

Feature:

In some circumstance ,such as Narrow feeding belt,thin materiel, less metals, this type of machine is suitable to be used
Simple configuration , reliable run , substantial economy ,non- maintenance ,non-noise

Fan Cooling Electromagnetic Separators

Technical Parameters of ZCY-P Manual Cleaning Permanent Magnetic Separators

	ZCY-P40	ZCY-P50	ZCY-P65	ZCY-P80	ZCY-P100
Belt Width Adaptive (mm)	400	500	650	800	1000
Suspension Height Rated(SHR) (mm)	125	150	200	250	300
Magnetic Force at SHR (mT)	>70	>70	>70	>70	>70
Belt Velocity Adaptive (m/s)	≤4.0
Catching Ability (Kg)	0.1~30
Weight (Kg)	310	460	630	910	1240
Suspension Dimensions D×E (mm)	340×340	460×460	600×600	770×770	1000×1000
Outline Dimensions A×B×C （mm）	900×850×400	1000×875×425	1150×1025×438	1350×1225×480	1500×1375×510

(For Reference Only)
