EX Magnetizing Power |
![](mats_pic/ProductSee_07.gif) |
|
|
|

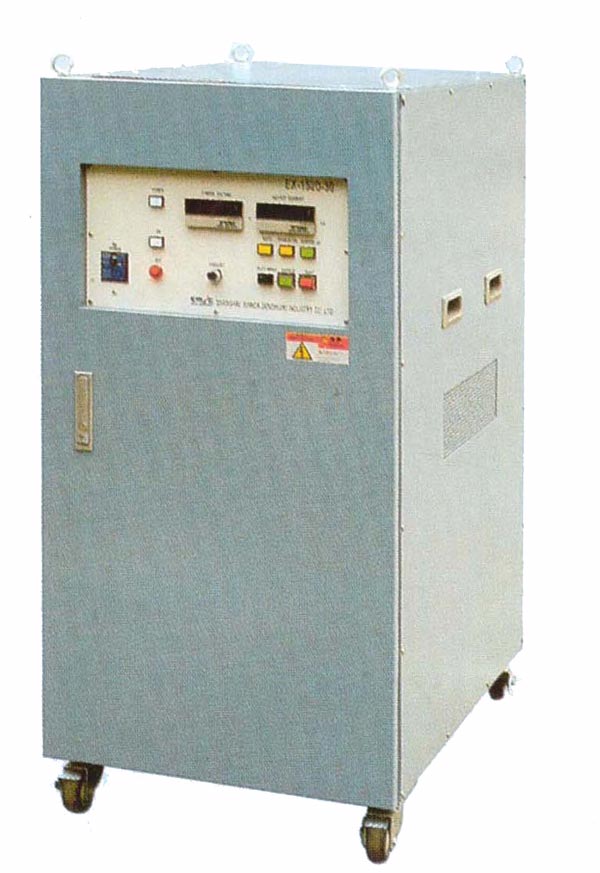

The EMIC-DCD magnetizing power is made according to the EMC technology,including the designing,parts selecting,producing and testing.The main advantages of the fixture are:
- The repeat precision of the charge voltage is +/- 1V +1 digit.
- The operation is easy.
- The capacity of the condenser can be changed.
- High charge voltage and low output impedance.
- Build in the standard ampere meter with compare function.
- Build in the inner discharge circuit.
- High reliability and safety.
- Useing the main condenser and SCR passed the enduring testing more than 5 million times.
| |
Model |
EX-4030-30 |
EX-4060-30 |
EX-40120-30 |
EX-40180-30 |
EX-40240-30 |
EX-40300-30 |
Input Power |
AC220V 50~60Hz 60A |
AC380V 50~60Hz 60A |
Max Output Curent |
30,000 |
30,000 |
Charge Voltage |
DC200~4000V |
DC200~4000V |
Repet Precision Of Charge Voltage |
± 1V+1 digit |
± 1V+1 digit |
Charge Time |
12 sec |
24 sec |
16 sec |
24 sec |
32 sec |
40sec |
The capacity of Condenser |
3000 uF |
6000 uF |
12000 uF |
18000 uF |
24000 uF |
30000 uF |
The Capacity Of Changing |
1000/2000/3000 |
1000/2000/6000 |
1000/2000/6000/12000 |
1000/2000/6000/
12000/18000 |
1000/2000/6000/
12000/18000/24000 |
1000/2000/6000/
12000/18000/24000/
30000 |
Main Switch |
SCR |
SCR |
Compare Function |
Have |
Have |
Interior Dicharge Circuit |
Have |
Have |
Enclosure Dimensions |
1000W×1000D×2000H |
1660W×1000D×2000H |
3000W×1000D×2000H |
2000W×2000D×2000H |
3000W×2000D×2000H |
3000W×3000D×2000H |
Weight |
1200Kg |
1800Kg |
3600Kg |
4800Kg |
6000Kg |
7200Kg |
|

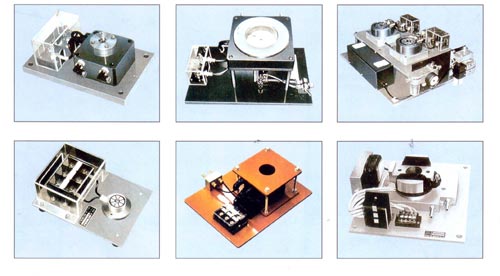

The optimal yokes and coils are designed and built according to the request of customers
![Magnetizing yoke and coil](mats_pic/ex.jpg) |
|
Series of machinery for magnetic industry for your choice
|
![](Image/trans.gif) |
|
|
Download :
Download Catalog(zip file
for .doc)of magnetizer: DOWNLOAD
NOW!
|
|
|
