The Special Magnetizing Power
page print
EX Magnetizing Power |
![](mats_pic/ProductSee_07.gif) |
|
|
|
Uses of the special magnetizing power
- Type of 1504,1506
magnetizing for micromotor in either inner or outer ways.The magnetized motors' ditributions of magnet fileds will be in highly uniformity.
- Type of 1510-20 II,2510-2510-30II
Magnetizing for multi-pole of teeny pole distance rare earth,one equipment may match with two yokes or two coils
- Type of 1520-30 II V
polar-anisotropic and tropism magnet automatically can be loacted the right magnetizing position according to the polarizing axis of the magnets.
- Type of 4030-30 II
two work-position uses jointly one magnetizer,magnetizing independently with different voltage.
| |
Model |
EX-1504-10 |
EX-1506-10 |

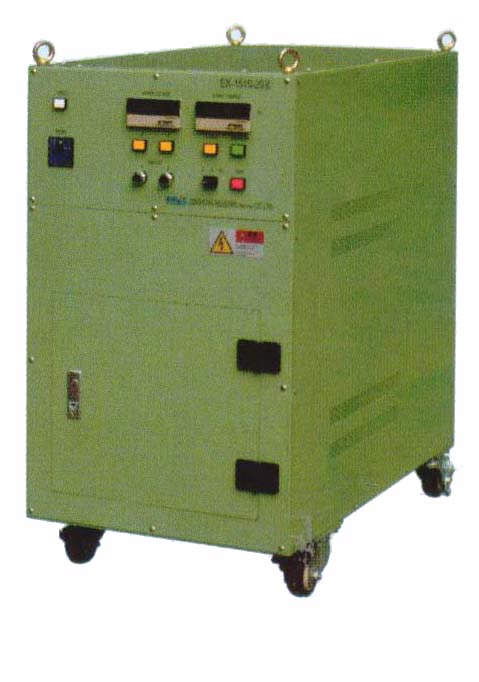

EX-1510-20 II |
EX-1520-30 IIV |
EX-2510-30 II |
EX-4030-30 II |
Input Power |
AC220V 50~60Hz 10A |
AC220V 50~60Hz 15A |
AC220V 50~60Hz 30A |
AC220V 50~60Hz 40A |
AC220V 50~60Hz 60A |
Max Output Curent |
10,000 |
10,000 |
20,000×2 |
30,000×2 |
30,000×2 |
30,000×2 |
Charge Voltage |
DC50~1500V |
DC50~1500V |
DC50~1500V |
DC50~2500V |
DC200~4000V |
Repet Precision Of Charge Voltage |
±1V+1 digit |
±1V+1 digit |
± 1V+1 digit |
Charge Time |
2 sec |
4 sec |
5 sec |
4 sec |
12 sec |
The capacity of Condenser |
400 uF |
600 uF |
1000 uF |
2000 uF |
1000 uF |
3000 uF |
The Capacity Of Changing |
none |
400/600 |
none |
1000/2000 |
none |
1000/2000/3000 |
Main Switch |
SCR |
SCR |
SCR |
Compare Function |
Have |
Have |
Have |
Interior Dicharge Circuit |
Have |
Have |
Have |
Enclosure Dimensions |
450W×850D×565H |
450W×1000D×565H |
500W×1000D×900H |
600W×900D×1350H |
1000W×1000D×2000H |
Weight |
154Kg |
150Kg |
200Kg |
280Kg |
320Kg |
1200Kg |
|
|
Series of machinery for magnetic industry for your choice
|
