| The High Power Magnetizing Power
page print

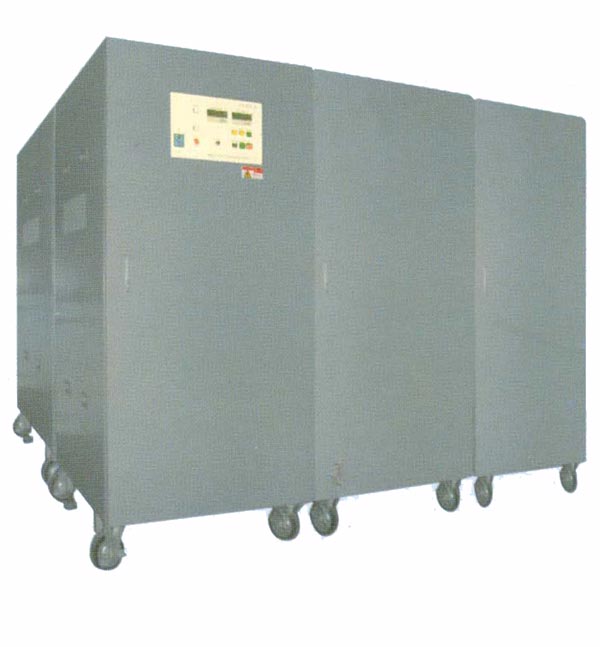

| EX Magnetizing Power |
 |
|
|
|
The EMIC-DCD magnetizing power is made according to the EMC technology,including the designing,parts selecting,producing and testing.The main advantages of the fixture are:
- The repeat precision of the charge voltage is +/- 1V +1 digit.
- The operation is easy.
- The capacity of the condenser can be changed.
- High charge voltage and low output impedance.
- Build in the standard ampere meter with compare function.
- Build in the inner discharge circuit.
- High reliability and safety.
- Useing the main condenser and SCR passed the enduring testing more than 5 million times.
| |
| Model |
EX-4030-30 |
EX-4060-30 |
EX-40120-30 |
EX-40180-30 |
EX-40240-30 |
EX-40300-30 |
| Input Power |
AC220V 50~60Hz 60A |
AC380V 50~60Hz 60A |
| Max Output Curent |
15,000 |
30,000 |
| Charge Voltage |
DC200~4000V |
DC200~4000V |
| Repet Precision Of Charge Voltage |
+/- 1V+1 digit |
+/- 1V+1 digit |
| Charge Time |
12 sec |
24 sec |
16 sec |
24 sec |
32 sec |
40sec |
| The capacity of Condenser |
3000 uF |
6000 uF |
12000 uF |
18000 uF |
24000 uF |
30000 uF |
| The Capacity Of Changing |
5,000/10,000 |
10,000/20,000 |
1000/2000 |
none |
1000/2000 |
1000/2000/3000 |
| Main Switch |
SCR |
SCR |
| Compare Function |
Have |
Have |
| Interior Dicharge Circuit |
Have |
Have |
| Enclosure Dimensions |
1000W×1000D×2000H |
1660W×1000D×2000H |
3000W×1000D×2000H |
2000W×2000D×2000H |
3000W×2000D×2000H |
3000W×3000D×2000H |
| Weight |
1200Kg |
1800Kg |
3600Kg |
4800Kg |
6000Kg |
7200Kg |
|
|
|
Series of machinery for magnetic industry for your choice
|
 |
|
|
|
