MATS-2010SA

Soft Magnetic Material Dynamic Hyteresisgraph System

Model MATS-2010SA

Automatic measurement on hysteresis loop of soft magnetic material under dynamic (AC) condition, accurate measurement on dynamic magnetic characteristic parameters such as amplitude permeability μa, looss angle δ, iron loss Pc, remanence Br and coercive force Hc.

Windows measurement software applied simply. It conforms to China National Standards GB3658 - 83, GB5026 - 85 and GB9632 - 88, industry standard SJ / T10281 - 91 and international standard IEC60404 - 6.

Analog source (bridge), frequency indicator, ammeter, voltmeter and wattmeter are replaced through computer control and high speed A/D sampling, entire testing process automatically completed.

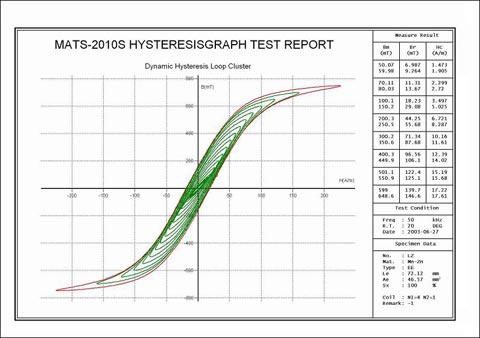

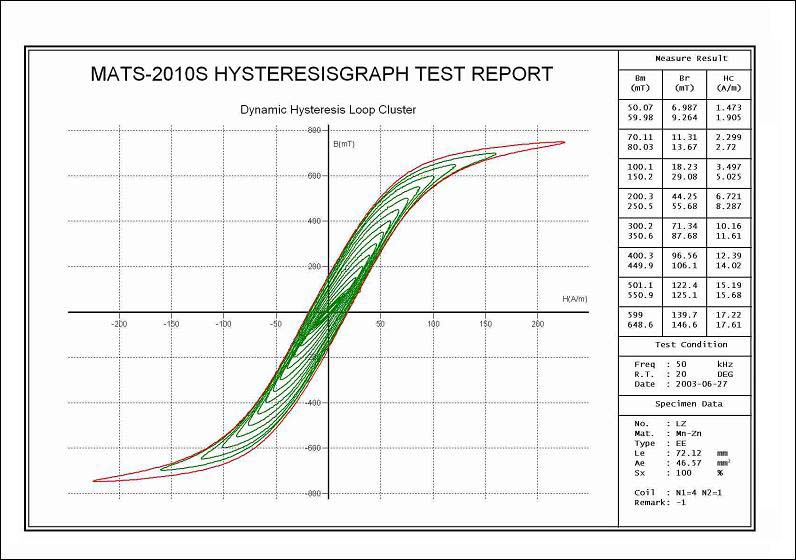

Dynamic Hysteresis Loop Cluster of Mn-Zn
Zoom

Click to see big image


Reference Hysteresis Graphs

Ps-F Losses Curve of FJ [2005-08-25]
Permeability vs.Frequency ... [2005-08-25]
Ps-B Losses Curve of Mn-Zn [2005-08-25]
Dynamic Magnetization Curv... [2005-08-25]
Dynamic Hysteresis Loop Cl... [2005-08-25]
Dynamic Hysteresis Loop of... [2005-08-25]
