MATS-2010M

Soft Magnetic Material Dynamic Hyteresisgraph System

Model MATS-2010M

Automatic measurement on dynamic hysteresis loop of soft magnetic (silicon steel) material under 50Hz, 60Hz, 400Hz and 1kHz, accurate measurement on dynamic magnetic characteristic parameters such as amplitude permeability μa, loss angle δ, total losses Ps, remanence Br and coercive force Hc.

Windows measurement software applied simply. The product conforms to China National Standards GB / T3655 - 92, GB / T13789 - 92 and international standard IEC60404 - 6.

Analog source (bridge), frequency meter, ammeter, voltmeter and wattmeter are replaced through computer control and A/D sampling, entire testing process automatically completed.

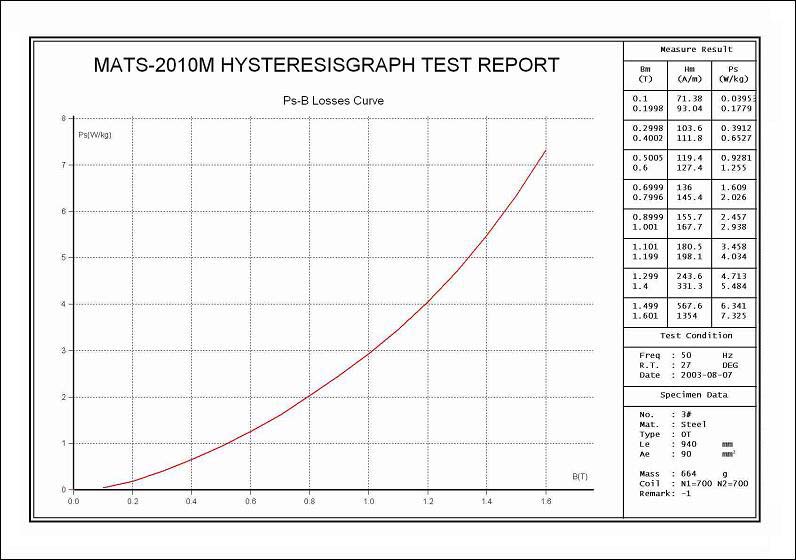

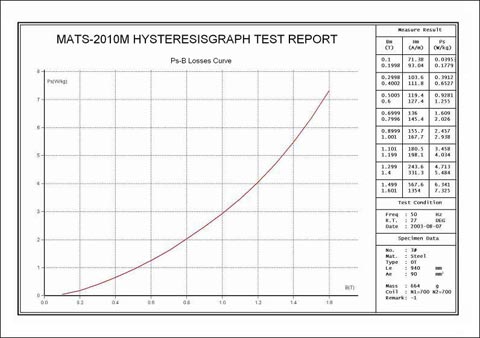

Ps-B Losses Curve of Steel
Zoom

Click to see big image


Reference Hysteresis Graphs

Ps-B Losses Curve of Vario... [2005-08-25]
Magnetization Curve of Var... [2005-08-25]
Ps-B Losses Curve of H50_B... [2005-08-25]
Dynamic Magnetization Curv... [2005-08-25]
Ps-B Losses Curve of Steel [2005-08-25]
Dynamic Magnetization Curv... [2005-08-25]
